KRG71 series grinding machine is the new generation products based on introduction, digestion of similar products, according to the market demand. Suitable for long blade edge grinding and meet the demands of different angle edge grinding.
序号No. | 名称Name | 规格型号Model | 单位Unit | 备注Mark |
1 | 工作台Workbench | 160×1600 | ㎜ |
|
2 | 工作台回转角度Workbench turning angle | ±90° |
|
|
3 | 砂轮Grinding wheel | φ305×φ240×120 | ㎜ |
|
4 | 磨头转速Revolving speed | 1460rpm | rpm |
|
5 | 磨头回转角度Grinding head turning angle | ±5° |
|
|
6 | 砂轮线速度Grinding speed | 23 m/s | m/s |
|
7 | 进给方式Feed mode | 自动进给Auto |
|
|
8 | 磨头电机Grinding motor | 7.5KW |
|
|
9 | 机床总功率Total power | 9.37KW |
|
|
10 | 磨头垂直进给Vertical feeding | 300 | ㎜ |
|
11 | 电源电压Supply voltage | 3phase 415V |
|
|
12 | 电源频率Supply frequency | 50 HZ |
|
|
13 | 润滑方式Lubricating system | 自动定时Self-timing |
|
|
14 | 外形尺寸Size | 3980×1260×1950 | ㎜ |
|
15 | 机床重量Weight | ≈2300 | ㎏ |

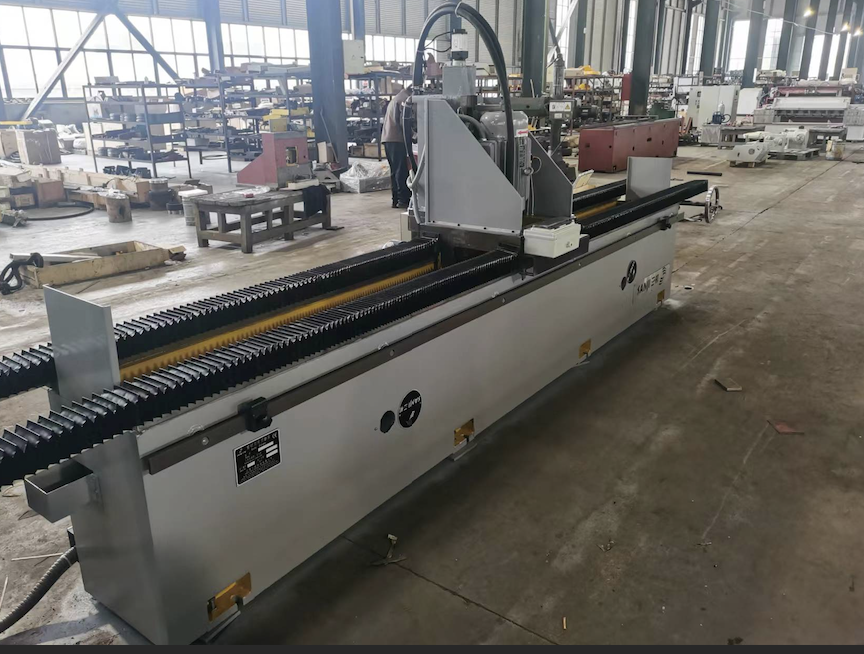

Grinding machine
(Main parameter of the knife grinder： working table 1700*160mm,2200*160mm)
机型及参数（Type and parameter） 名称（Name） |
KR2MS6917-160 |
KR2MS6922-160 |
工作台面积：长×宽(毫米) Working table area: length×width(mm) |
1700×1600 |
2200x160 |
磨削通道高度（毫米） Grinding passageway height(mm) |
160 |
160 |
砂轮尺寸(毫米) Grinding wheel size(mm) |
Φ200×φ150×100 |
Φ200×φ150×100 |
磨头车架往复速度（无级 米/分钟） Vertical speed of a grinding(step -less m/min) |
4—20m/min(step-less) |
4—20m/min(step-less) |
机床总功率(千瓦) Power of the machine tool(kw) | 约7.5kw(其中磨头电机5.5kw) About7.5kw | 约7.5kw(其中磨头电机5.5kw) about 7.5kw |
工作台回转角度 Return angle of the grinding table |
±90° |
±90° |
磨头回转角度 Return angle of the grinding head |
±4° |
±4° |
工件磨削后等厚度 (mm) Equal thickness after grinded(mm) | 0.03 | 0.03 |
刀刃直线度 (mm) Straightness after grinded(mm) | 0.10 | 0.10 |
重量(千克) Net weight(kg) |
2000 |
2200 |
外型尺寸：长×宽×高(厘米) Size：length×width×height(cm) | 3800*1000*1650 | 4300*1000*1650 |
Grinding machine
KR2MS series
Logo marking machine
Electrocorrosion
Item no.: KRG001
Unit price: usd349/set
Logo marking machine
1, KRG001 logo marking machine can used for many kinds of steel marking.
2, Suitable to marking:
knives, hardware, machine parts,Kitchen and bathroom hardware, hss, tc, carbon steel , stainless steel ,copper, aluminium alloy, chrome, titanium. etc.
3, Carton size : 45x35x23 mm
Gross weight: 11KGS

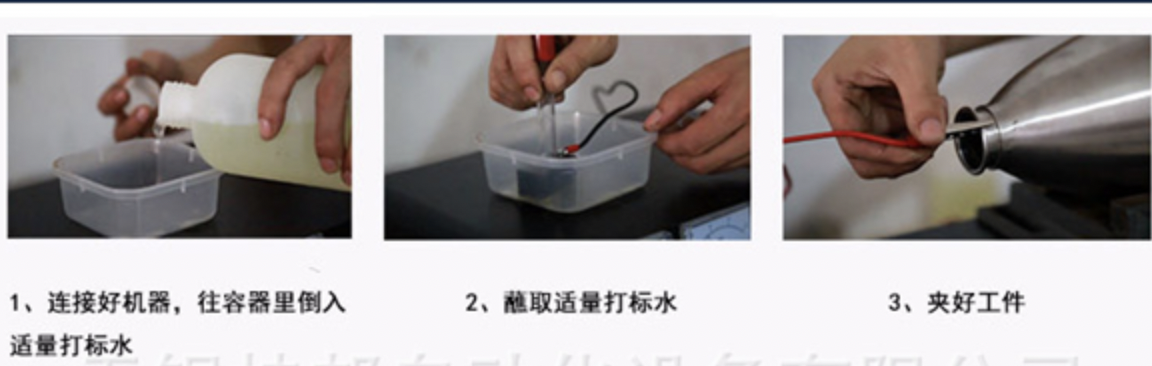

4,Marking steps : very simple. see right steps.
Logo result
Packing
